RF shielding Measurements

Brief description

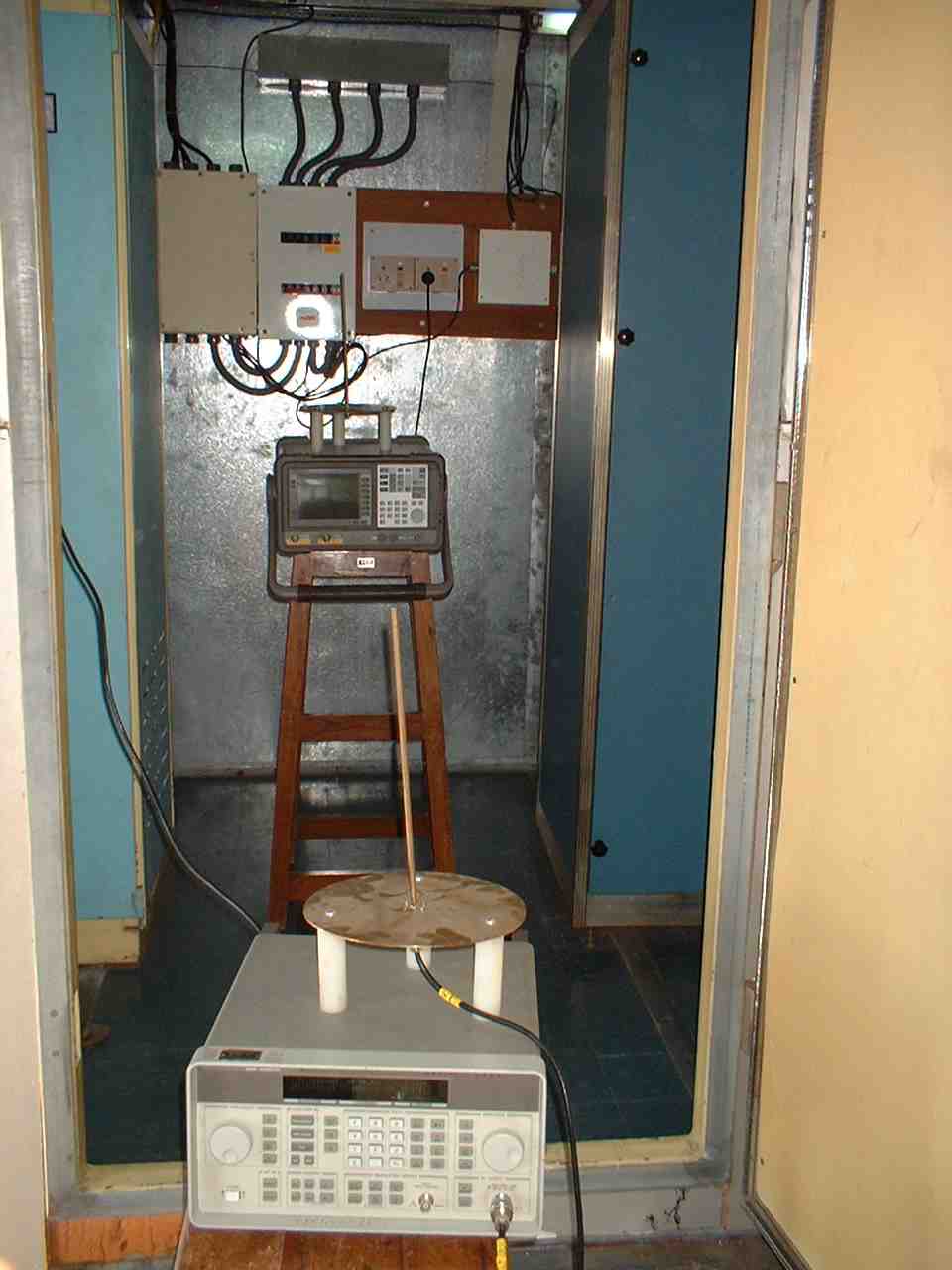

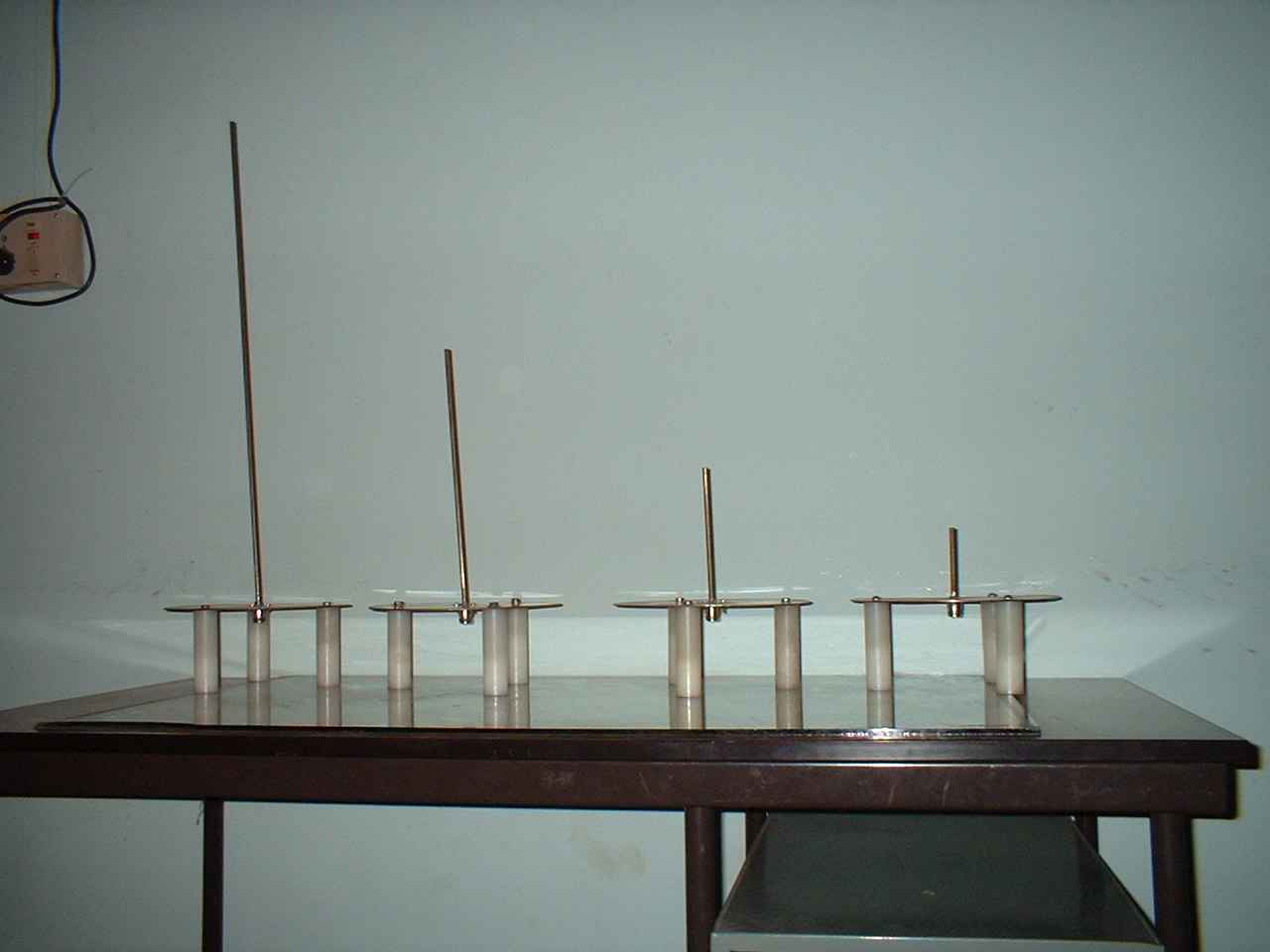

RF shielding measurements - Recently we have started checking the shielded cages for RFI shielding effectiveness. A set of antennas with signal generator and spectrum analyzer is used for this purpose. We have used insertion method for the measurement of shielding. We have measured a shielding of the order of 40 dB in the cages we have checked so far.
